Idea Vault: Tree view

A Bookmarklet or a Browser extension to select the root element of a DOM (UL/OL) to view the Inverted tree structure of its child nodes.

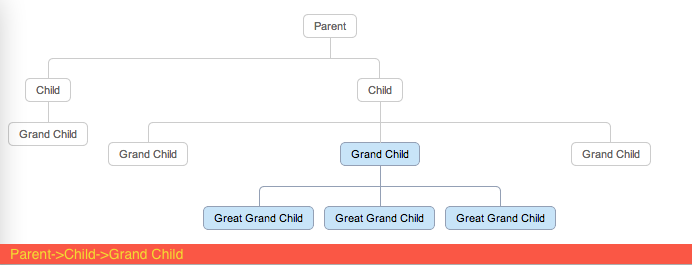

Due to usability issues in horizontal scrolling, we settled on Expand/Collapse Tree view design for almost all usecases. At times I find, it would be easier to understand if we can visualize the Expand/Collapse Tree view to traditional inverted tree structure.

Usecases

• Role Hierarchy trees,
• JSON - visualize JSON as inverted tree while inspecting data structure.

XPath for selected node is my must have feature

Resources

•  CSS3 Tree

P.S: Try “Play Walkthrough” on thecodeplayer.com link above.
